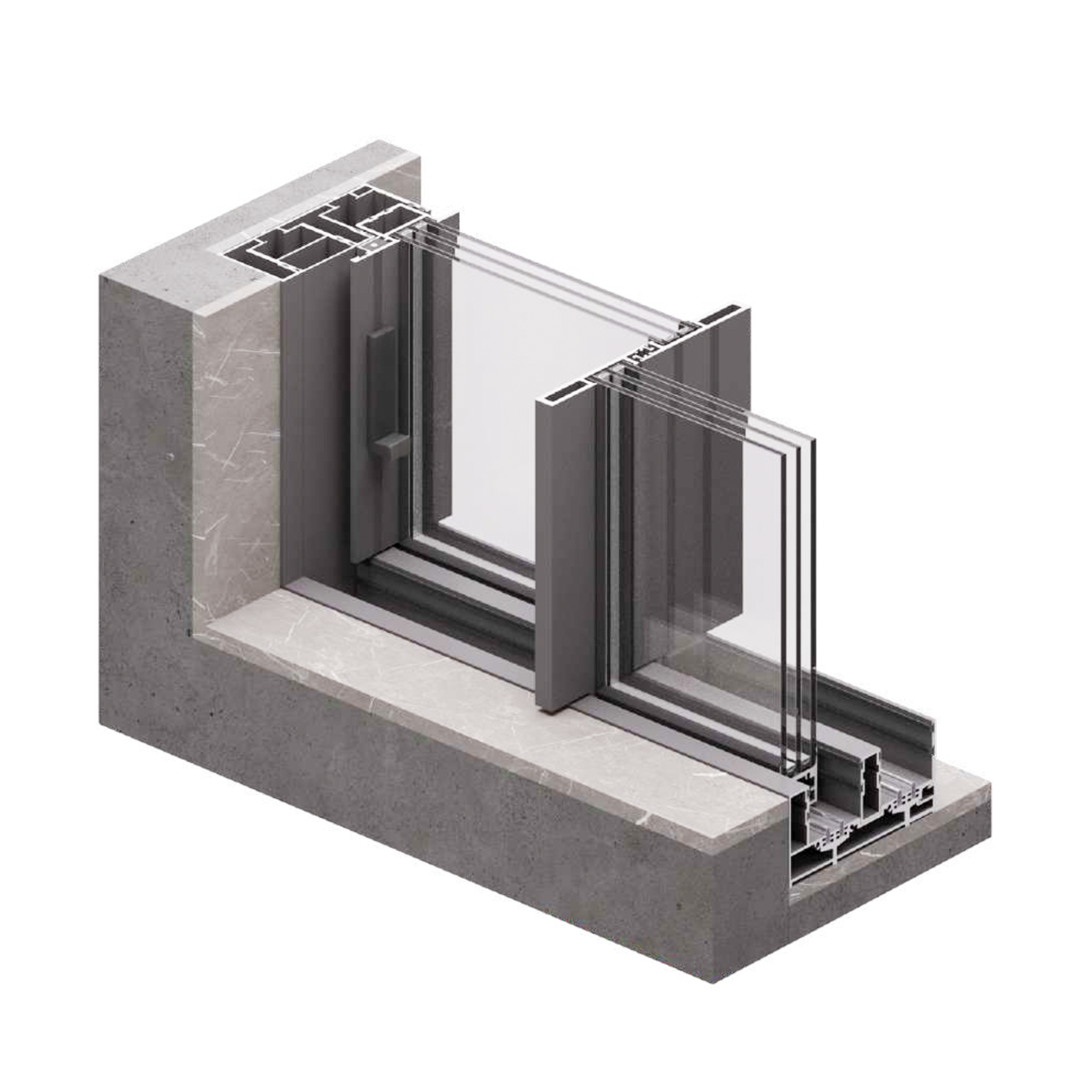

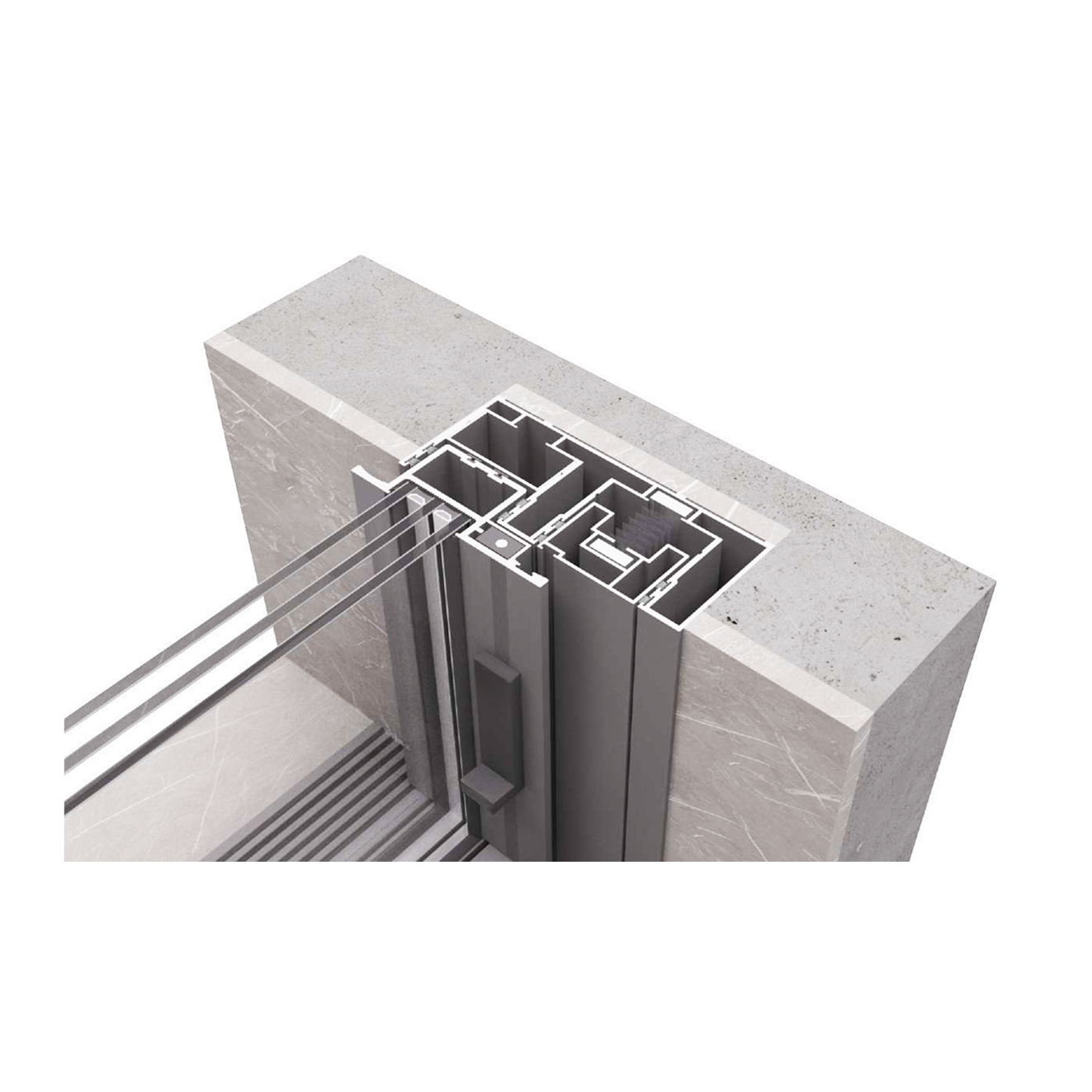

AR IMPERIAL SLIM SYSTEM
The Zenth of Design: Invisible Frames for Paanoramic Living
Elevate your architectural vision with the Imperial Slim series-a system designed for the true connoisseur. By seamlessly integrating the precision-engineered structure into the building’s fabric, we have achieved a revolutionary “invisible frame” aesthetic. This creates a boundless expanse of glass, inviting the horizon into your living space without a single visual obstruction.
- Exceptional Craftsmanship: Built from premium-grade materials for a lifetime of silent, effortless operation.
- Minimalist Luxury: A statement in sophisticated design that prioritizes light and openness.
- Uncompromising Safety: High-performance multi-locking systems ensure extreme security.
Sound insulation
Water tightness
Wind load
Color choice
Impact resistance
10 years warranty
Technical Specifications
| Feature | Specification |
|---|---|
| Track Frame Width / Height | 164 mm / 68 mm |
| Interlock Sightline | Ultra-slim 17 mm |
| Glass Compatibility | 20 mm to 38 mm |
| Max Shutter Dimensions | 6000 mm (H) x 3500 mm (W) |
| Locking Mechanism | Multi-point (Top & Bottom) |
| Integrated Features | Pleated Mosquito Net |
| Load & Wind Resistance | 500 kg Roller Cap / 3.8 KPA Wind Load |

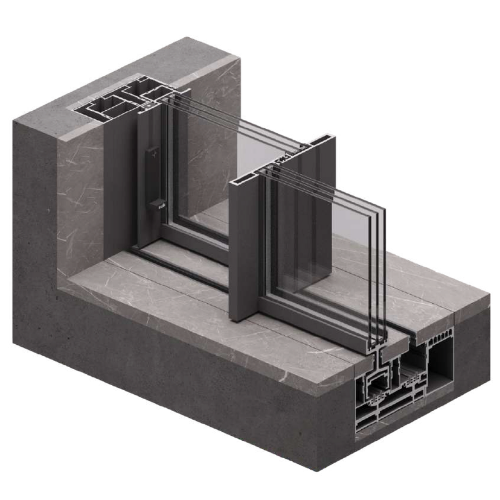

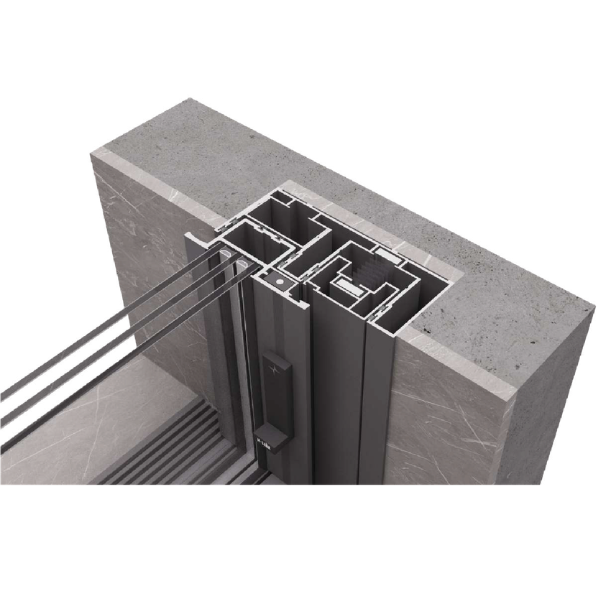

AR Imperial Slim SS2
(All-Way Concealed)
The ultimate expression of “less is more.” This variant hides the entire frame and track within the walls, creating a stunning frameless pocket door effect.
- Technical Highlights: 225 mm Track Width, 105 mm Track Height, 17 mm Sightline. (No Mosquito Net).

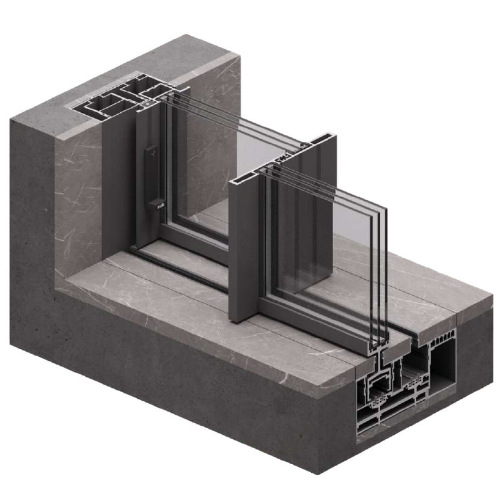

AR Imperial Slim SS3
(One-Side Concealed)
Designed to create a “floating panel” illusion by concealing the frame on one side, maximizing light for a contemporary, sharp aesthetic.
- Technical Highlights: 164 mm Track Width, 68 mm Track Height, 17 mm Sightline. (No Mosquito Net).
